LKE-3414-000

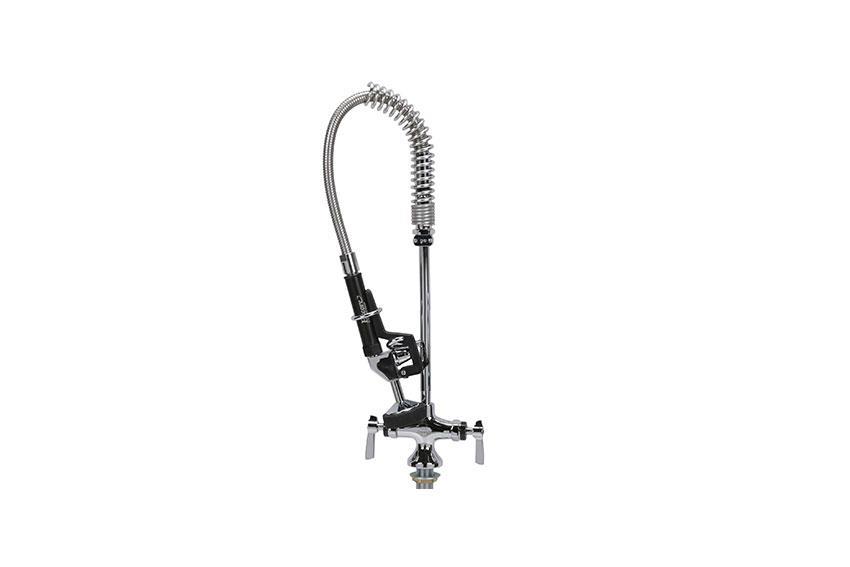

Mono-hole mini pre-flush table model - excl. 1/4 turn interm. faucet

Brand: Linum

Ordering is only possible with a professional partner login.
More details.

If you're interested in a quotation, please fill a quote basket.

Price

RRP*

Per Pc.

€ 437,75

From 6 Pc.

€ 419,21

Quarter turn operation with solid copper valve arrangement
Pressure-resistant stainless steel hose with reinforced spring base and reinforced inner hose
Teflon seals guarantee higher temperature resistance and leak-free operation
Reinforced crane base with double O-rings and additional threaded swivel
Double-walled, insulating (heat-resistant) handle in synthetic material
Nozzle head standard supplied with water saving spray plate
Wall mount (wall bracket) with locknut
Without fully rotating intermediate valve (LKE-9531)
Built-in check valves
Height: +/- 716 mm
Free height: +/- 113 mm between bottom nozzle head and faucet base
Overhang distance: 242 mm between nozzle head and feed pipe
Drill diameter: 28,6 mm
Inlets: 1/2" male (L = 450 mm)
Debit flow: 12,5 l/min at 3 bars
Max. pressure: 8 bars
Water temperature: 5 - 83°C
